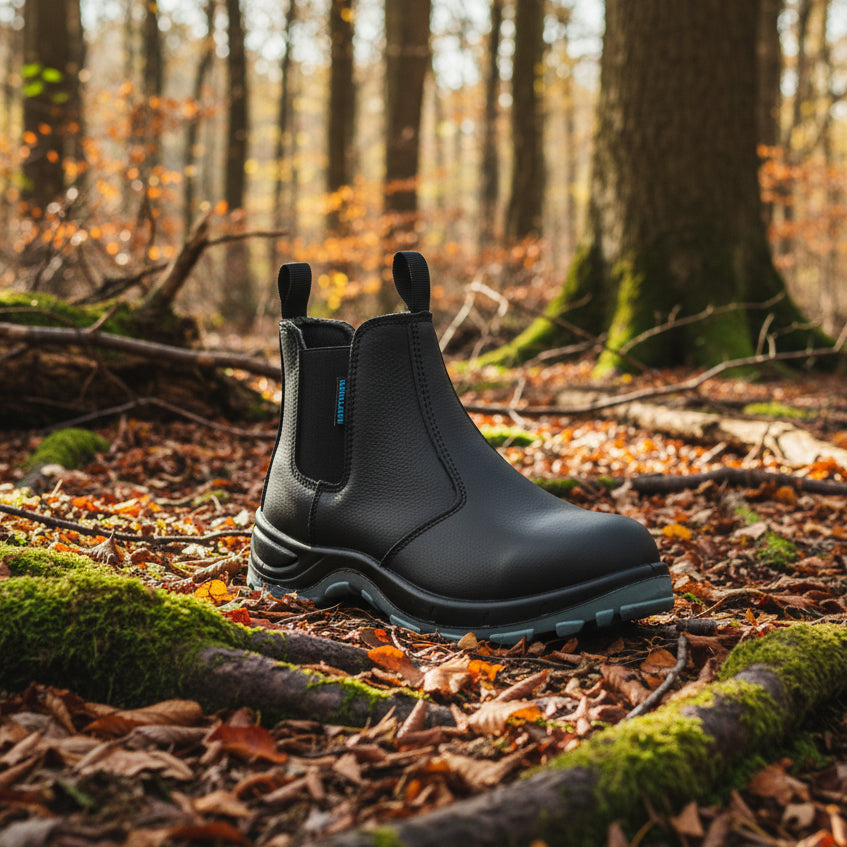

Footwear Component Specifications

• 1. Toe Cap

  • Material: Steel

  • Dimensions: 2mm (Thickness)

  • Assembly: Setting and bonding

• 2. Collar Lining

  • Material: Mesh

  • Dimensions: 50mm (Length)

  • Assembly: Glue and stitching

• 3. Midsole

  • Material: Polyurethane

  • Dimensions: 4mm (Thickness)

  • Assembly: Injection moulded

• 4. Upper

  • Material: Smooth leather

  • Dimensions: 1.6mm–1.8mm (Thickness)

  • Assembly: Stitching

• 5. Insole

  • Material: Mesh

  • Dimensions: 10mm (Minimum thickness)

  • Assembly: Manual insertion, non-bound

• 6. Outsole

  • Material: Polyurethane

  • Dimensions: 5mm (Thickness); 6mm (Length/Cleat depth)

  • Assembly: Injection moulded

• 7. Vamp Lining

  • Material: Non-woven fabric

  • Dimensions: 1.2mm (Thickness)

  • Assembly: Glue and stitching

• 8. Cleats

  • Material: Polyurethane

  • Dimensions: 3mm (Minimum height)

  • Assembly: Injection moulded

• 9. Elastic Band

  • Material: Textile

  • Dimensions: 42mm (Width) x 75mm (Length)

  • Assembly: Stitching

• 10. Pull Tabs

  • Material: Textile

  • Dimensions: 20mm (Width) x 35mm (Length)

  • Assembly: Stitching

Material Composition

•

  Upper: Smooth cow leather.



•

  Insole & Lining: Polyester non-woven insole with non-woven fabric vamp lining and nylon mesh quarter lining.



•

  Toecap: Made of steel.



•

  Outsole: Dual-layer PU/PU (Polyurethane).



•

  Insock: Removable, water-permeable full insock made of black mesh and EVA with antistatic thread.



Key Dimensions

• Material Thickness:

  •

    Upper: 1.6mm.



  •

    Insole: 2mm.



  •

    Insock: 6–8mm.



  •

    Toecap: Minimum of 2mm.



• Height & Length:

  •

    Upper Height: Ranges from 132mm (sizes 3-4) to 162mm (size 13).



  •

    Toecap Internal Length: Ranges from 34mm to 42mm depending on size.



  •

    Outsole Length: Ranges from 265.00mm (size 3) to 330.48mm (size 13).



Assembly Methods

•

  Outsole & Layers: Attached to the upper and to each other via injection moulding.



•

  Insole: Assembled using heat and pressure between heated platens.



•

  Toecap: Fixed using setting and bonding.



•

  Insock: Manually inserted and non-bound.



Additional Features

•

  Seat Region: Designed as a closed seat region.



•

  Exclusions: This model does not include a tongue, penetration-resistant inserts, metatarsal protection, or specialized heat/cold insulation layers.
