GRASSHOPPER 127 Zero Turn Mower 61in Deck NGH127V61

🏎️ General Description

The Grasshopper 127V is a compact mid-mount zero-turn mower equipped with a heavy-duty 61″ DuraMax fabricated steel deck—perfect for larger residential properties (typically 1–4 ha). It delivers professional-grade power and zero-radius turning in a homeowner-friendly footprint

---

🔧 Engine & Performance

• Engine: 810 cc Briggs & Stratton CXi commercial OHV V‑Twin (49.4 cu in)

• Horsepower: Approximately 26–27 HP

• Fuel Capacity: 24.6 L

• Air Filtration: Integrated 5‑step cyclonic system—excellent dust protection

• Speed: Up to ~12.9 kph (forward), 9.7 kph (reverse)

---

🌿 Deck & Cutting System

• Cutting Width: 61″ fabricated DuraMax steel deck

• Deck Depth: 5.5″ extra‑deep steel with reinforced leading edge

• Cut Height: 1.0–5.0″, adjustable via QuikAjust drop‑pin system

• Blades/Spindles: Three tempered alloy blades and Sentry™ spindles with 8″ flanges & double bearings

• Versatility: Standard side discharge, with optional Down Discharge mulching or PowerVac vacuum attachment

---

🛞 Transmission & Steering

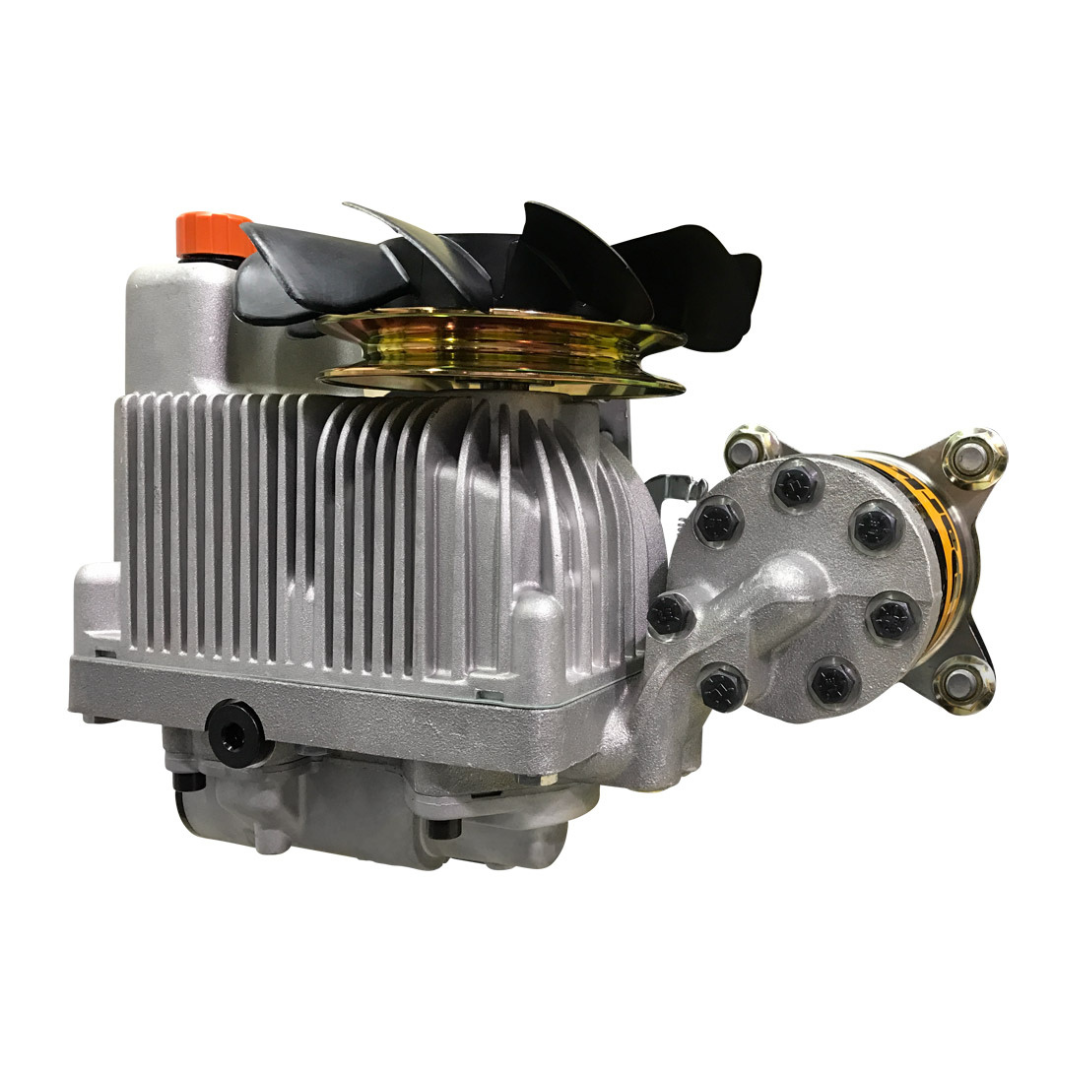

• Transmissions: Matched pair of Parker HT Series fully hydrostatic pumps and wheel-motors with inline cooling fans

• Turning Radius: True zero-radius (pivot in place)

• Controls: Dual HydraSmooth or ComfortReach control levers with neutral-return function

---

💺 Operator Comfort & Safety

• Seat: Iso-mounted Premium Comfort seat with coil-spring suspension, padded lumbar support, Cordura® fabric, adjustable fore/aft and foldable armrests

• Ride Features: Shock Impact Reduction System (SIRS), roomy footrest, View-Eze console, cup holder

• Safety Systems: Vigilant Operator Presence System (interlocks), OPS bar with belt, parking brake light

---

🛠️ Construction & Maintenance

• Frame: Heavy-gauge robotically welded powder-coated steel

• Belt System: Kevlar V-belt with self-tensioning idler arm, only two greasable points

• Filtration: Transmission fluid with inline filter, no break-in oil change required
