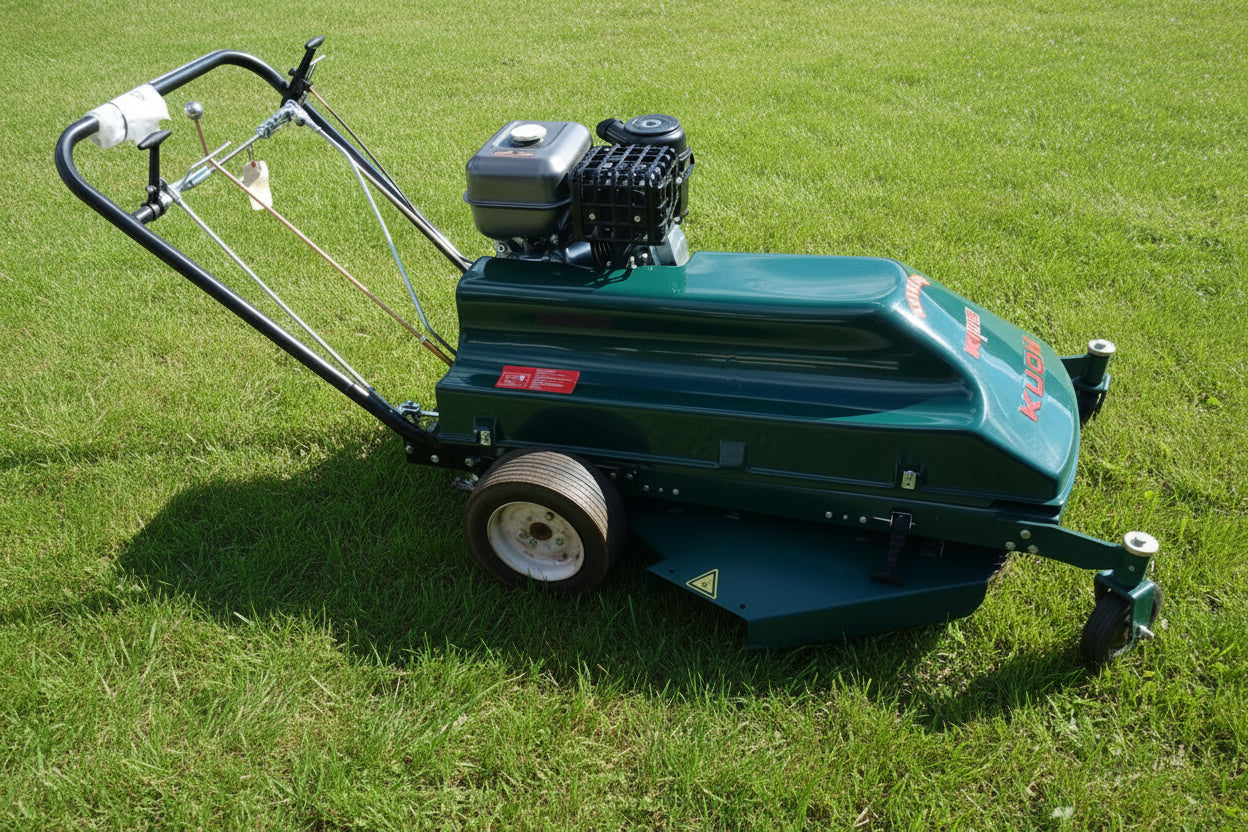

Chassis Specifications:

• Chassis: 5mm Cold Rolled Steel
• Blades: 3 swing back blades
• Disk: Round 4mm disk
• Cutting width: +- 82cm.
• Drive: self-propelled
• Gearbox: 2 speed
• Gearbox: Breather cap
• Gears: low gear – 3.5 km/h, high gear – 6.5 km/h
• Wheels front and rear: Solid Rubber
• Front wheels: Castor dual bearings
• Rear wheels: Wide solid tyre with split rims
• Cutting height: 12 to 75mm
• Cutting height setting: 4 position Single lever on handle
• Deck engagement: Single lever on handle
• Drive to Gearbox: V- belt
• Cutter deck drive engage: V-Belt lever on handle
• Safety: Deck v-belt covered by fiberglass cover

Engine Specifications:

Displacement: (cc)                                  420

Power Output @ 1700 RPM (kW/HP)    11/15

Max Torque (N.m - r/min)                       23/2750

Bore and Stroke (mm)                             90x66

Compression Ratio                                  8.4:1

Oil Capacity   (Litres)                               1.1

Fuel Capacity (Litres)                               6.5

Net Weight (Kg)                                       31

Engine Mount (mm)                                 PD 165.1

Shaft Taper                                               J609b

Application - Generator (Max kVa)         7.5

Shaft Straight  (Diameter mm)                25.4

• Over Head Valve Technology

• Automatic mechanical pressure relief device: Reduces starting resistance allowing smooth and easy startup

• Mechanical speed governor which enables an engine to rotate more steadily
