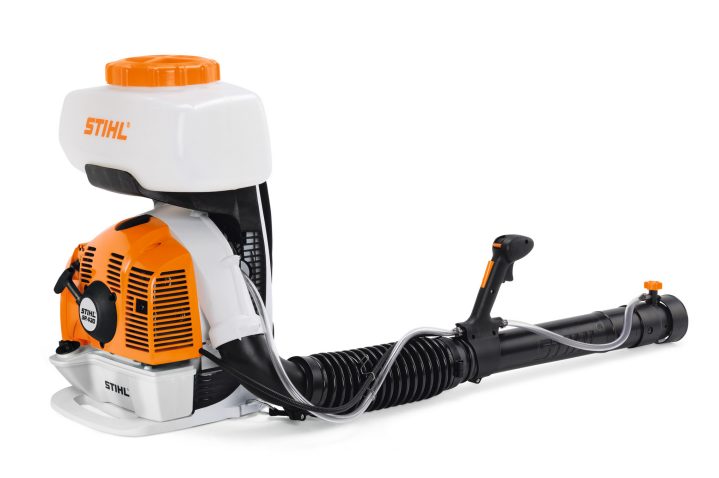

STIHL SR430 Petrol Mist Blower
SR 430 backpack sprayer: very long range for larger areas
The STIHL SR 430 petrol mistblower offers fruit growers, winemakers and farmers a particularly large spray range for spraying liquids. The backpack sprayer has a compact design, weighs 12.2 kg and comes with a comfortable carrying system with a back panel to which several additional cushions are mounted. You can operate the STIHL 2-MIX engine and the valve for the spray agent supply with one hand using the single-handed multi-function handle. The engine can be started quickly when cold thanks to the simple starting logic with one-time choke control and manual fuel pump, ensuring that you can get to work without delay.
The STIHL SR 430 mistblower is also equipped with STIHL ElastoStart. This makes the starting process even easier by cushioning any force peaks on the starter handle.
The spray agent is dosed into the air stream via a valve between the container and nozzle, and this air stream agitates foliage so that the undersides of leaves up to 2.5 m high can be treated. The three standard-supplied cone, deflection and double deflection meshes allow you to adjust the shape and direction of the spray jet so that the liquids land in the desired location in a targeted manner. You can top up the transparent spraying agent tank with 14 l of spraying agent without mess via a large filler opening. Thanks to the protective collar, spillages do not come into contact with the back rest pad. The STIHL anti-vibration system protects your muscles and joints during use. The air filter system with pleated paper filter on the STIHL SR 430 petrol sprayer protects the engine, assuring long service intervals.
You can also retrofit the STIHL SR 430 mistblower with the STIHL pressure pump attachment set to achieve a reliably constant application quantity for every spray lance position. This is because the practical accessories for mistblowers ensure very good mixing of the liquid through constant circulation. The higher pressure also allows for a finer spray mist. The STIHL extension tube is also available as an optional accessory, allowing you to customise the STIHL SR 430 mistblower for special requirements.
Technical Details
| Displacement | 63.3 cm³ |
| Power | 2.90 kW |
| CO2 | 874 g/kWh |
| Device weight without refuelling | 12.2 kg 1) |
| Container capacity | 14 l |
| Tank capacity | 1.700 l |
| Tank capacity | 1700 cm³ |
| Air throughput without tube | 1300 m³/h |
| Max. spraying distance, horizontal | 14.5 m |
| Device width | 423 mm |
| Device height | 674 mm |
| Sound pressure level | 99 dB(A) 2) |
| Sound power level | 108 dB(A) 2) |
| Vibration level right | 1.2 m/s² 3) |
