Description

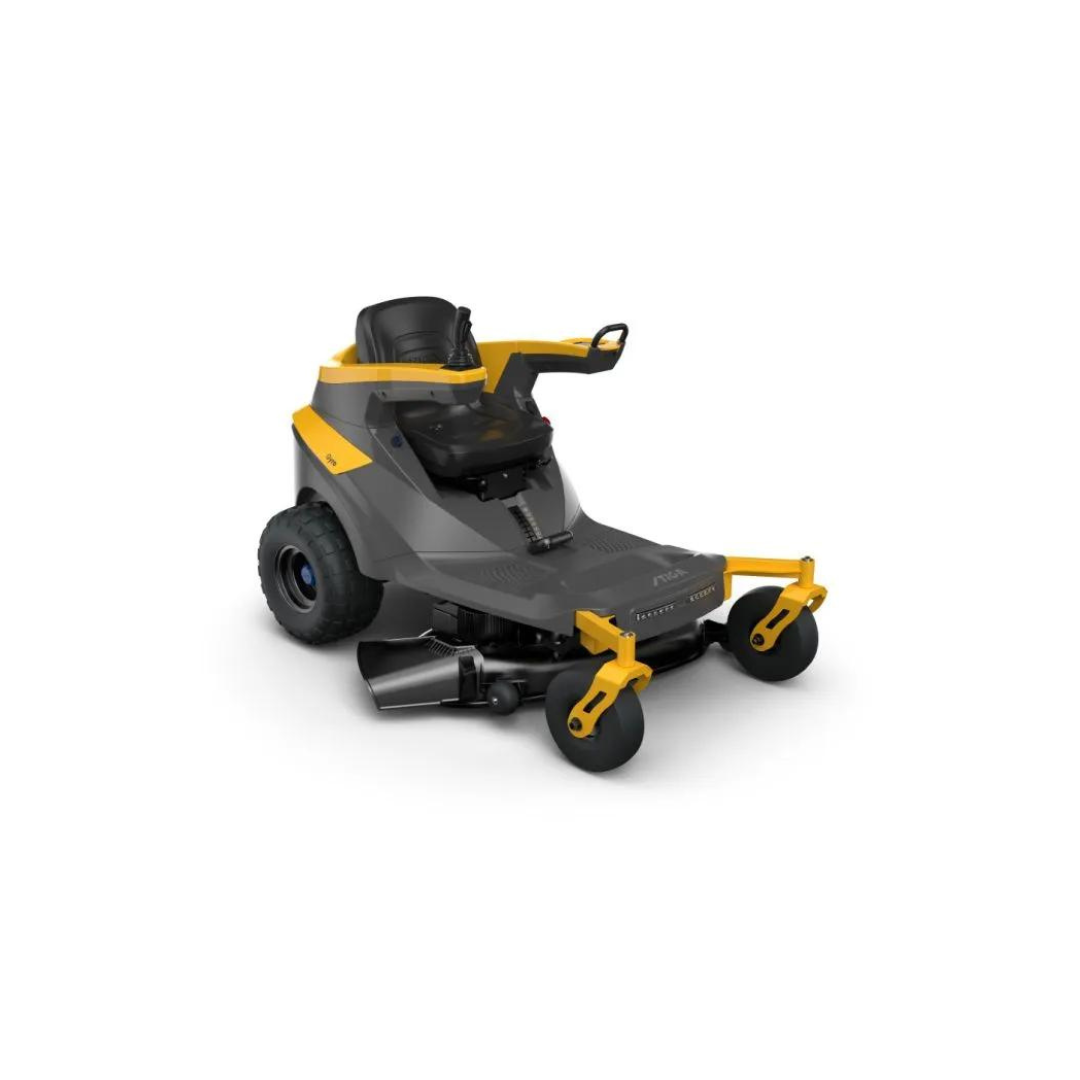

STIGA Gyro is the first ever drive-by-wire joystick mower with STIGA Direct Drive technology. Battery-powered, energy-efficient and safe. The STIGA drive-by-wire system is really intuitive and easy to manage. The whole design and functioning of the STIGA Gyro axial mower is built on the patented STIGA Direct Drive technology. STIGA Gyro 500e is the smallest model in the family, featuring a 98 cm cutting deck (mulching as optional) and a 40Ah battery pack. Up to 80 minutes runtime and 5000 sqm working area (on one charge)

Power

• ePower: Yes
• **Power:**4.7 kW
• Power source: Lithium-ion battery
• Voltage: 48 V
• Battery Voltage: 48 V
• Number of cells: 224
• Charging system: External charger
• Maximum working area: 5000 ㎡
• Battery capacity: 40 Ah
• Charging time: 2.45 h
• Battery kit: Included
• Battery type: Lithium-ions
• Lithium battery nominal energy: 2000 W
• Charging current: 18 Ah
• Temperature control: Yes – temperature sensors

Cutting System

• Cutting method: Side discharge
• Cutting width: 98 cm
• Deck Construction: Stamped
• Deck lift: Manual
• Cutting height adjustment: Manual
• Cutting height range: 25 – 105 mm
• Blade type: Mulching
• Maximum slope: 15°
• Minimum uncut radius: 0 cm
• Reverse mowing: Yes
• Deck material: Steel
• Blade rotation: Untimed
• Cutting height positions: 8 positions
• Number of blades: 2
• Type of drive: Drive by wire – Joystick

Drive System

• Traction: Rear-wheel drive
• Maximum speed forward: 11 km/h
• Driving: STIGA eMotion

Transmission

• Transmission method: Drive-by-wire
• Transmission type: Dual electric – STIGA Direct Drive
