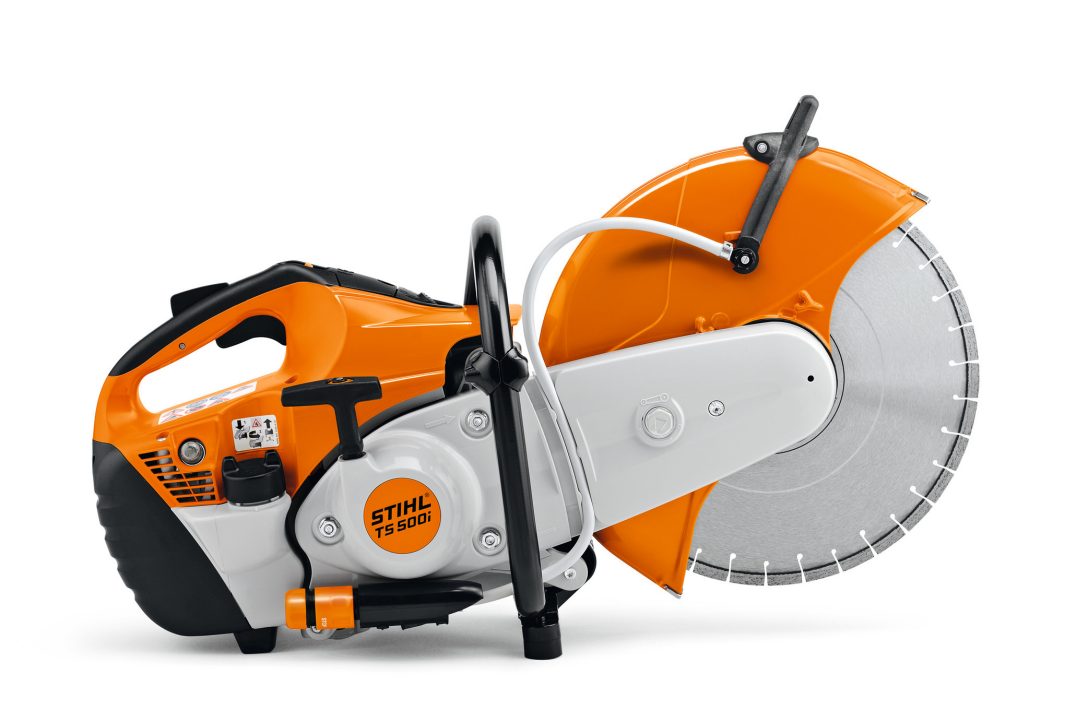

STIHL TS 500i Petrol Cut-Off Machine, 350 mm – NSTS500I
TS 500i petrol cut-off machine: precise work thanks to modern injection technology
The STIHL TS 500i petrol cut-off machine uses a 350 mm cutting wheel, for example the STIHL D-BA80 diamond cutting wheel, and is suitable for professional use in the fields of building construction, civil engineering and road construction. Equipped with the innovative,electronically controlled STIHL Injection system, the STIHL 2-MIX engine of this power tool guarantees very good running characteristics and high torque. What’s more, the STIHL TS 500i is particularly easy to start, with just one starting position. The STIHL ElastoStart function and decompression valve also reduce the effort required to start the cut-off machine. The ergonomic handle design and, in particular, the STIHL anti-vibration system protect muscles and joints while you work. The reduction of vibrations also helps you to guide the machine precisely as it cuts.
The electronic water control system automatically switches the water supply on and off to ensure optimally metered watering of the cutting wheel. Fine dosing can be controlled easily via a keypad. By ensuring a long filter service life, the long-life air filter system allows you to benefit from particularly easy maintenance for the STIHL TS 500i petrol-driven cut-off machine. Its drive can easily be retensioned using the semi-automatic belt tensioning function, which extends the life of the belt and bearing.
This video showcases the technical features of the STIHL TS 500i.
Technical Details
| Displacement | 72.2 cm³ |
| Power | 3.90 kW |
| Engine power | 5.30 HP |
| CO2 | 748 g/kWh |
| Device weight without refuelling | 10.2 kg 1) |
| Cutting disk diameter | 350 mm |
| Max. cutting depth | 125 mm |
| Device length with cutting disc | 73 |
| Sound pressure level | 98 dB(A) 2) |
| Sound power level | 112 dB(A) 3) |
| K-value (sound pressure level) | 2 dB(A) 4) |
| K-value (sound power level) | 2 dB(A) 4) |
| Vibration level left | 2.4 m/s² |
| Vibration level right | 2 m/s² |
