Generator Universal Brushes

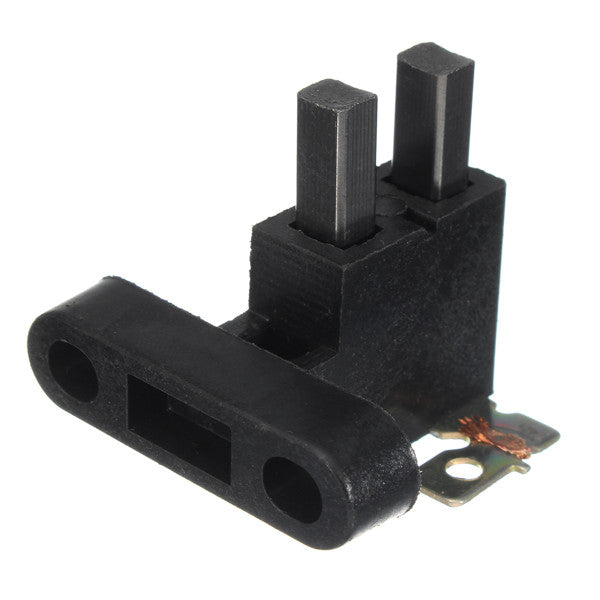

Universal Carbon Brush Assembly – Fits 4KW, 5KW, 7KW Generators

Specifications:

• Style: Universal (4KW, 5KW, 7KW)

• Mounting Bolt Hole Diameter: 1/4"

• Bolt Spacing: 1" center-to-center

• Brush Dimensions: 1/4" x 3/16"

• Brush to Edge Distance: 3/4"

• Spacing Between Brushes: 7/16" center-to-center

• Electrical Connection: 2 Single Blade Terminals

• Size: Refer to product image for exact measurements

Application:
This carbon brush assembly is designed for generator charging systems and is compatible with a wide range of brands and models. If your current carbon brush closely resembles this unit in size and configuration, it is likely to be a suitable replacement. The assembly includes two 1/4" mounting holes spaced 1" apart and brush spacing approximately 5/8" from the backplate. Spacers can be used if needed to ensure proper brush contact.
